Low Voltage Joint Kits

Connecting sleeves for joining cables

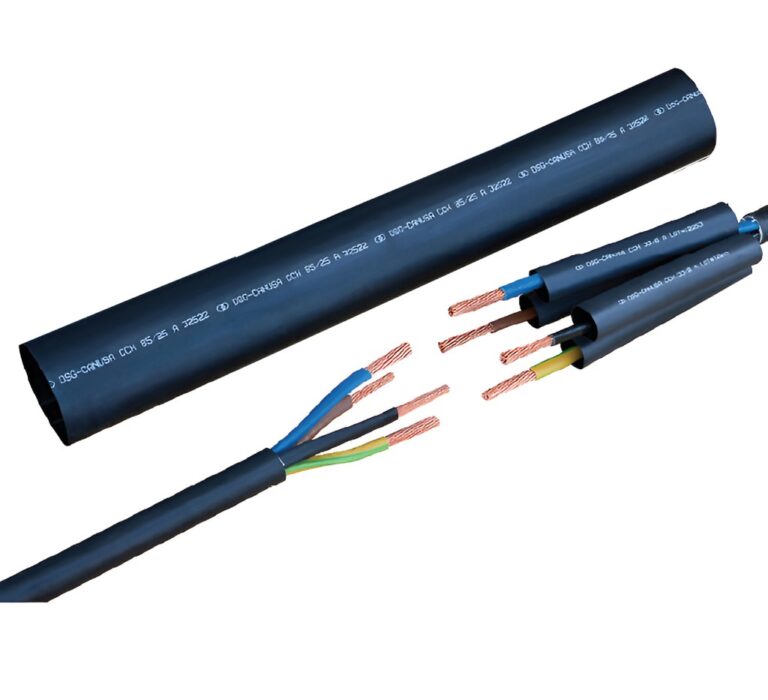

LVJUAC, LVJUAM and LVJUAS connecting (cable-jointing) sleeves are perfectly suitable for joining multi-core, polymeric insulated energy cables in the low voltage range.

  • LVJUAM Multi-region joint sleeve for screw connectors
  • LVJUAC Multi-region joint sleeve for crimp connectors
  • LVJUAS Joint kits for screened polymeric cable
  • CJK/CTK Joint and termination kits for armoured cables

Features and Benefits

  • Quick, simple installation
  • Exceptionally good electrical insulation
  • Good mechanical load-bearing ability
  • No maintenance time necessary
  • Usable immediately

Standards

  • Din EN 50393 (VDE 0278-393):2006-11
  • Din V 47640:2008-10

Typical Applications

  • Low voltage joints, transition joints and terminations

Standard Content

  • 1 outer sleeve
  • 3, 4 or 5 inner sleeves
  • Cleaning cloth
  • Abrasive cloth
  • Installation instructions
  • Screen continuity where applicable

On request the sleeves can also be supplied in different lengths and/or diameters.

Joint Kits for Plastic-Insulated 0.6/1kV Cables

Joint Kits for Plastic-Insulated 0.6/1kV Cables

Joint Kits for Srceened-Insulated 0.6/1kV Cables

Market/Applications

  • OEM
  • Industrial Construction/Automation
  • Power Distribution – LV
  • Utility

Ordering

  • Select a dimension which will shrink snugly over the component to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
  • Select options:
    • Color: Black (BK)
  • Please specify the product name, order number and options you require
  • Order example: Specify the product referring to above dimension chart

Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.

Low Voltage Joint Kits

Documentation

Low Voltage Kits Product Datasheet
Niederspannungs-Kits Produktdatenblatt
Contact Us

Product Properties

Joint Kits for Plastic-Insulated 0.6/1kV Cables

Description Cross Section of Conductors Din47640 Cable Type e.g.
For Screw Connectors
LVJUAM 4 x 1.5 – 4 x 16 4 x 1.5 – 4 x 16 NYY, NXY, NYX, NXX with round (r) or sectional (s), solid (e) or stranded (m), Aluminum (Al) or Copper (cu) conductors
LVJUAM 5 x 1.5 – 5 x 16 5 x 1.5 – 5 x 16
LVJUAM 4 x 6 – 4 x 25 4 x 6 – 4 x 25
LVJUAM 4 x 16 – 4 x 50 4 x 16 – 4 x 50
LVJUAM 5 x 16 – 5 x 50 5 x 16 – 5 x 50
LVJUAM 4 x 25 – 4 x 95 4 x 25 – 4 x 95
LVJUAM 4 x 35 – 4 x 150 4 x 35 – 4 x 150
LVJUAM 4 x 95 – 4 x 300 4 x 95 – 4 x 300

Joint Kits for Plastic-Insulated 0.6/1kV Cables

Description Cross Section of Conductors Din47640 Cable Type e.g.
For Crimp Connectors
LVJUAC 4 x 2.5 – 4 x 16 4 x 2.5 – 4 x 16 NYY, NXY, NYX, NXX with round (r) or sectional (s), solid (e) or stranded (m), Aluminum (Al) or Copper (cu) conductors
LVJUAC 5 x 2.5 – 5 x 16 5 x 2.5 – 5 x 16
LVJUAC 4 x 6 – 4 x 35 4 x 6 – 4 x 35
LVJUAC 5 x 6 – 5 x 35 5 x 6 – 5 x 35
LVJUAC 4 x 16 – 4 x 50 4 x 16 – 4 x 50
LVJUAC 4 x 35 – 4 x 150 4 x 35 – 4 x 150
LVJUAC 4 x 120 – 4 x 240 4 x 120 – 4 x 240
LVJUAC 4 x 185 – 4 x 300 4 x 185 – 4 x 300

Joint Kits for Srceened-Insulated 0.6/1kV Cables

Description Cross Section of Conductors
Din47640		 Cable Type e.g.
For Crimp or Screw Connectors
LVJUAS 4 x 2.5 – 4 x 16 4 x 2.5 – 4 x 16 NYCY, NYCWY, NHXH with round (r) or sectional (s), solid (e) or stranded (m), aluminum (Al) or Copper (cu) conductors
LVJUAS 5 x 2.5 – 5 x 16 5 x 2.5 – 5 x 16
LVJUAS 4 x 6 – 4 x 35 4 x 6 – 4 x 35
LVJUAS 5 x 6 – 5 x 35 5 x 6 – 5 x 35
LVJUAS 4 x 16 – 4 x 50 4 x 16 – 4 x 50
LVJUAS 4 x 35 – 4 x 150 4 x 35 – 4 x 150
LVJUAS 4 x 120 – 4 x 240 4 x 120 – 4 x 240
LVJUAS 4 x 185 – 4 x 300 4 x 185 – 4 x 300
Joint Kit for Armoured Cables
Code Core Size
CJK 4 4 x 1.5 – 4 mm²
CJK 16 4 x 6 – 16 mm²
CJK 50 4 x 25 – 50 mm²
CJK 95 4 x 70 – 120 mm²
CJK 240 4 x 150 – 240 mm²
Termination Kit for Armoured Cables
Code Core Size
CTK 16 4 x 6 – 16 mm²
CTK 50 4 x 25 – 50 mm²
CTK 95 4 x 70 – 120 mm²
CTK 240 4 x 150 – 240 mm²
