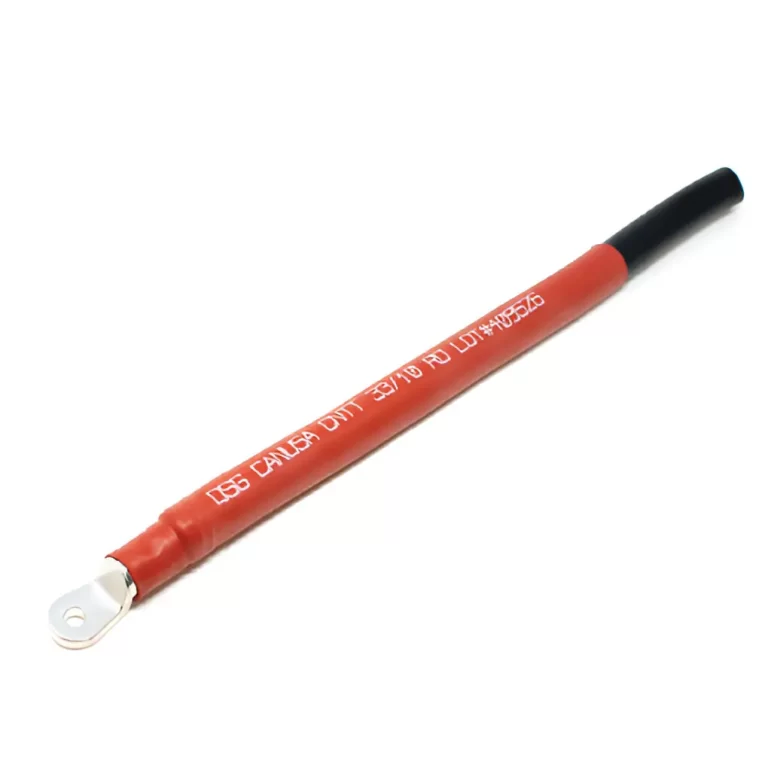

CNTT
Medium voltage crosslinked polyolefin tubing
Medium wall heat shrinkable non tracking tubing for use in MV joints & terminations up to 36kV.
Features and Benefits
- Non-tracking
- UV stabilized
- Flame retardant
- Exceptional electrical and weathering properties
- Suitable for outdoor & indoor terminations
- Shrink ratio: 3:1
- Continuous operating temperature: -55°C to 125°C
- Shrink temperature: 120°C min.
Standards
- HD 629.1 S2
- IEC 60502-4
- IEC 60055-1
- IEEE 48-1996
- Salt fog test IEC 1109
Typical Applications
Medium voltage joints and terminations up to 36kV, bus bar outdoor application, bus bars in harsh environments, e.g. nuclear application
Market/Applications
- Transit
- Shipboard
- OEM
- Power Distribution
- Industrial Construction/Automation
- Power Distribution – LV
- Industrial
- Petrochem/Pulp & Paper
- Utility
- Mining
Ordering
Select a dimension which will shrink snugly over the application to be covered. If recovery is restricted the resultant wall thickness will be less than specified.
- Select options:
- Color: Red-brown (RD-BN)
- Please specify the product name, order number and options you require
- Example: CNTT 45/15, red-brown, 150m
Please contact your Customer Service Representative for information on custom colors, sizes, lengths and material data sheet.
| Order Number | Expanded | Recovered | Delivery Units | |||||
| Internal Diameter (min) D | Internal Diameter (max) d | Total Wall Thickness (nom) W | Lengths | |||||
| mm | in | mm | in | mm | in | m | ft | |
| CNTT 33/10 | 33.0 | 1.299 | 10.0 | 0.394 | 2.80 | 0.110 | 15 | 50 |
| CNTT 45/15 | 45.0 | 1.772 | 15.0 | 0.591 | 2.80 | 0.110 | 15 | 50 |
| CNTT 60/19 | 60.0 | 2.362 | 19.0 | 0.748 | 3.10 | 0.122 | 15 | 50 |
| CNTT 80/25 | 80.0 | 3.150 | 25.0 | 0.984 | 2.90 | 0.114 | 15 | 50 |
