CSLK
Street lighting kit
Street Lighting Kits are a convenient method for the installation, maintenance and repair of street lighting systems
Features and Benefits
- Excellent insulation, sealing and strain relief for splice repairs or cable extensions
- Thermoplastic adhesive liner provides complete environmental protection and insulation
- High impact and abrasion resistance
- Kits can be installed at temperature as low as -40°C
- Tubing will not split or rupture during normal installation, even when overheated
- Shrink ratio: 3:1
- Continuous operating temperature: -55°C to 110°C
- Shrink temperature: 120°C
- Also available as a wrap-around sleeve
Typical Applications
Street lighting cable splices
Contents

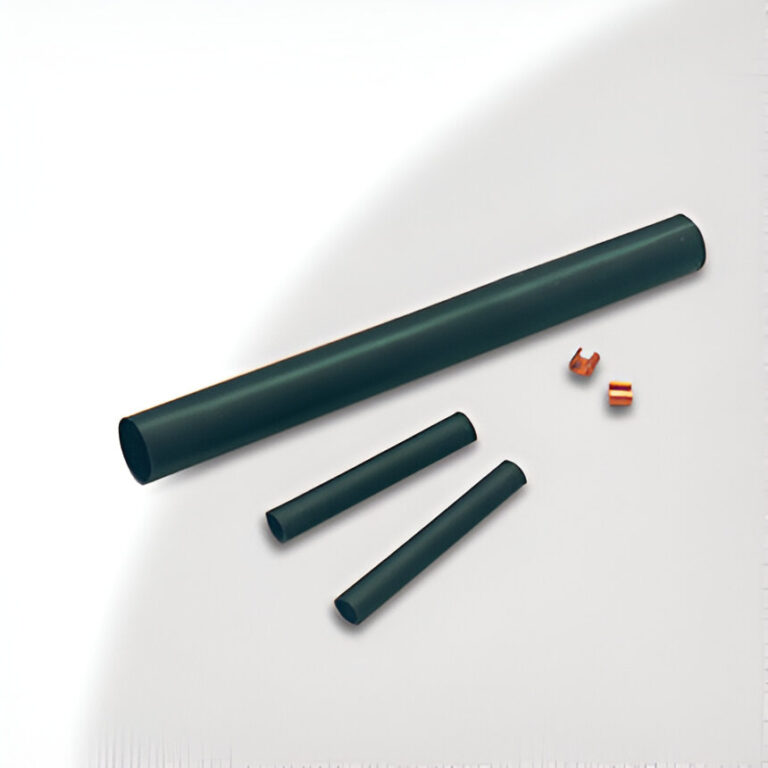

- Each kit includes adhesive coated heat shrink sleeves and compression connectors
Market/Applications
- Power Distribution
- Power Distribution – LV
- Utility
Ordering
- Select the appropriate CSLK Street Lighting Kit.
- Please specify the product name plus the options you require
- Example: CSLK 1A
Please contact your Customer Service Representative for information on custom kits and material data sheet.
| Order Number | Kit Description | Connector Type |
| 1 | 12 AWG, 2 Conductor, Solid 10 AWG, 2 Conductor, Stranded | 2 each, “C” Type/Crimp |
| 1A | 12 AWG, 2 Conductor, Solid 10 AWG, 2 Conductor, Stranded (with ground) | 3 each, “C” Type/Crimp |
